# Using Depth Compositing

***

### USING DEPTH COMPOSITING

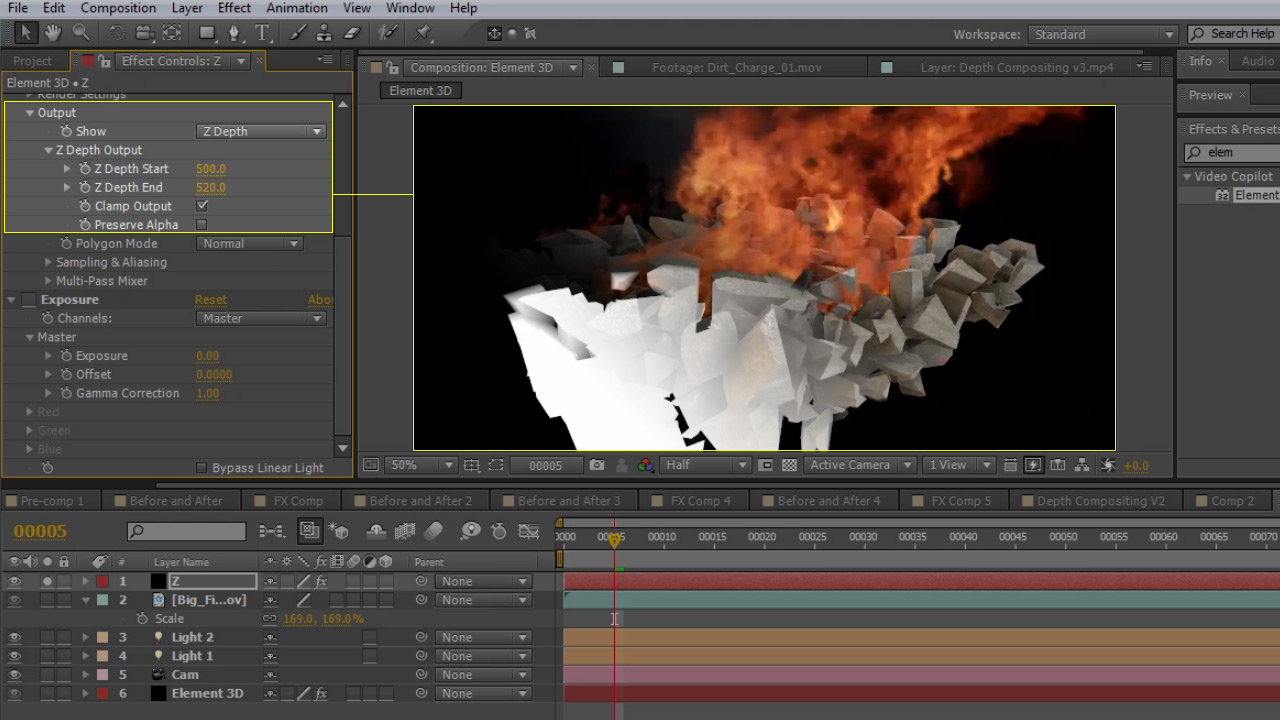

You can use a Z Depth or [World Position Pass](https://www.videocopilot.net/help/element/help_files_v2/compositing_element_3d/world_position_matte/) to integrate other layers. What you could do is use a duplicate of your Element layer, set the duplicate to Z Depth from the Output/Show. You can then set that layer as a track matte for another layer to get it to appear behind an object.

<figure><img src="https://2307539615-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVXPIT6wWK7VeTYMAHNYe%2Fuploads%2F1DgvHfseWjYm6TpYkwIs%2Fimage.png?alt=media&#x26;token=58aa9d61-eee1-4c5f-9254-339f294fea81" alt=""><figcaption></figcaption></figure>

***

**Z Depth Start**:\
Control the start depth (white) and how it transitions to the End (black).\
\
**Z Depth End**:\
Control the position of the Depth (black)  \
\
**Clamp Output**:\
Limits the maximum depth value to 1 when using 32bpc.\
\
**Preserve Alpha**:\
Makes background transparent&#x20;

***

{% hint style="info" %}
[![](https://www.videocopilot.net/assets/public/images/vc_cool/tutorialpics/popular/133.jpg)](https://www.videocopilot.net/tutorial/depth_compositing/)

**Depth Compositing**\
• Use a Z-pass render to combine 2D stock footage\
• Use most 3D programs like 3D max, C4D & even Element 3D\
\
[**WATCH NOW!**](https://www.videocopilot.net/tutorial/depth_compositing/)
{% endhint %}
